KV-XL Filler

Automation

KV-XL Filler

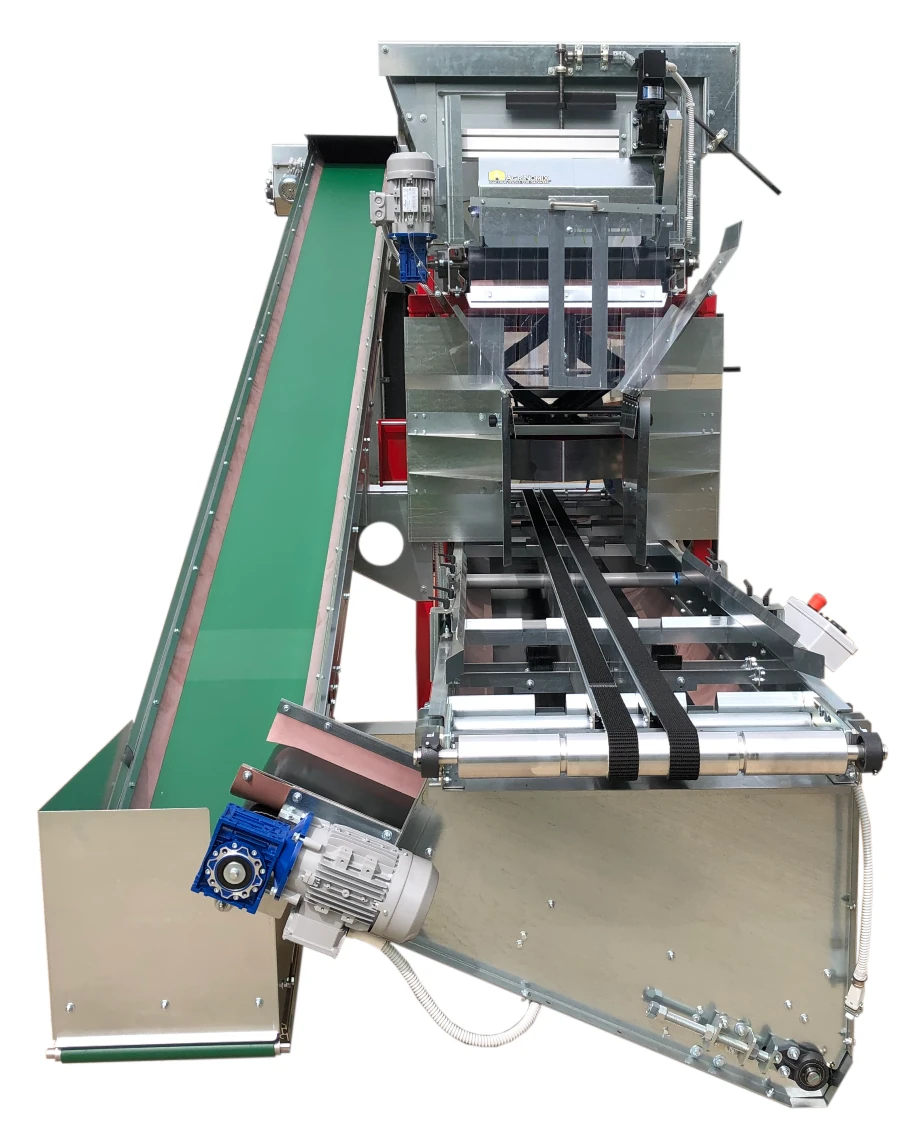

The KV-XL sets the standard for versatility and reliability. The soil hopper sits directly over the filling belt for even side-to-side filling while minimizing floor space.

Direct drive gearboxes, inverter duty motors, sealed bearings, and heavy-duty galvanized and powder-coated steel construction provide years of low-maintenance operation. Superior soil return uses powered rollers, three belt conveyors, and a short auger. Fills containers up to 22″ wide and 17.5″ high.

For pricing and additional information, contact the AdeptAg Sales team.

Contact For Quote

PDF Brochure

Details

- Throughput – Up to 36 cubic yards per hour
- Space-Saving Design – Hopper positioned directly over the filling belt for even side-to-side filling while minimizing floor space.
- Wide Container Range – Fills any container from 4″ to 22″ wide and up to 17.5″ tall.

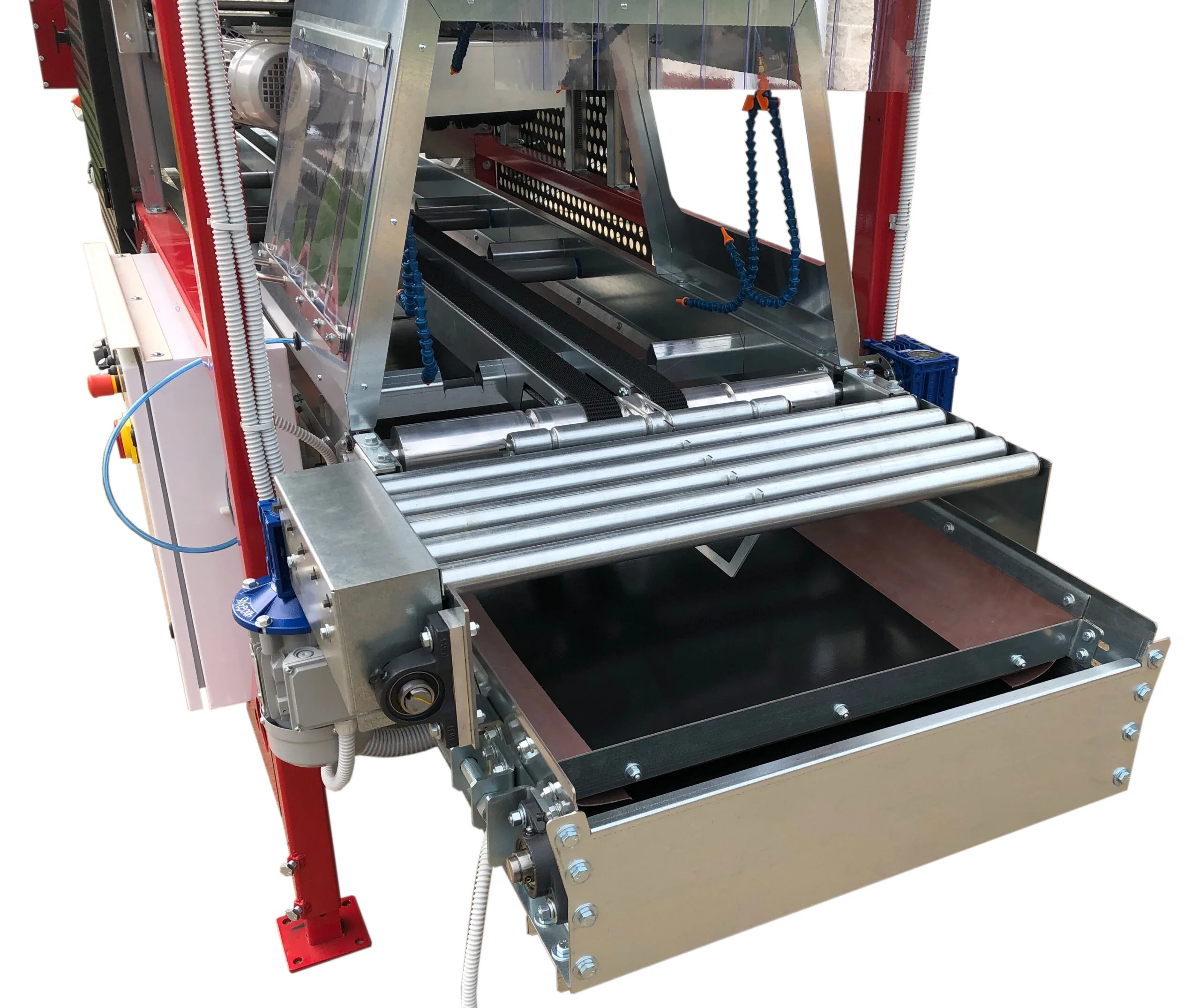

- Superior Soil Return – Large powered roller outfeed, three belt conveyors, and a short level auger move excess soil back into the supply hopper automatically.
- Quick Changeovers – Easy-to-use crank adjustments for compactor, roller, and rotary brush enable fast transitions between container sizes.
- Heavy-Duty Construction – Direct drive gearboxes, inverter duty motors, sealed bearings, and powder-coated steel for years of low-maintenance operation.
- Peat and Bark Compatible – Designed to handle both peat and bark soil mixes.
- Line Integration Ready – Controls designed for integration into larger production lines.
- Soil capacity: 2 cubic yards (expandable to 4 cubic yards)
- Throughput: Up to 36 cubic yards per hour
- Container Belt Speed Range: 150″ to 550″ per minute
- Weight: 3,500 lbs
- Container width: 4″ to 22″
- Max container height: 17.5″
- Overall dimensions: 203″ L × 70″ W × 106″ H
- Belt length: 160.5″
- Power: 220 VAC, 3-phase, 30A
- Drill max clearance: 10″ (optional dibbler)
- Drill bits: Up to 7″ (optional dibbler)

What the KV-XL Filler Does

Heavy-duty, even filling for large containers up to 22 inches wide

The KV-XL is a heavy-duty tray and pot filler that delivers even, side-to-side fills on large containers, up to 22 inches wide and 17.5 inches high, so every crop starts the same. The soil hopper sits directly over the filling belt for consistent fills in a compact footprint, and a superior soil-return system keeps media on the line instead of the floor. Easy crank adjustments make changeovers quick from one container to the next, and the heavy-duty, galvanized build is made for years of low-maintenance operation.
