Chemical Hopper

Automation

Chemical Hopper

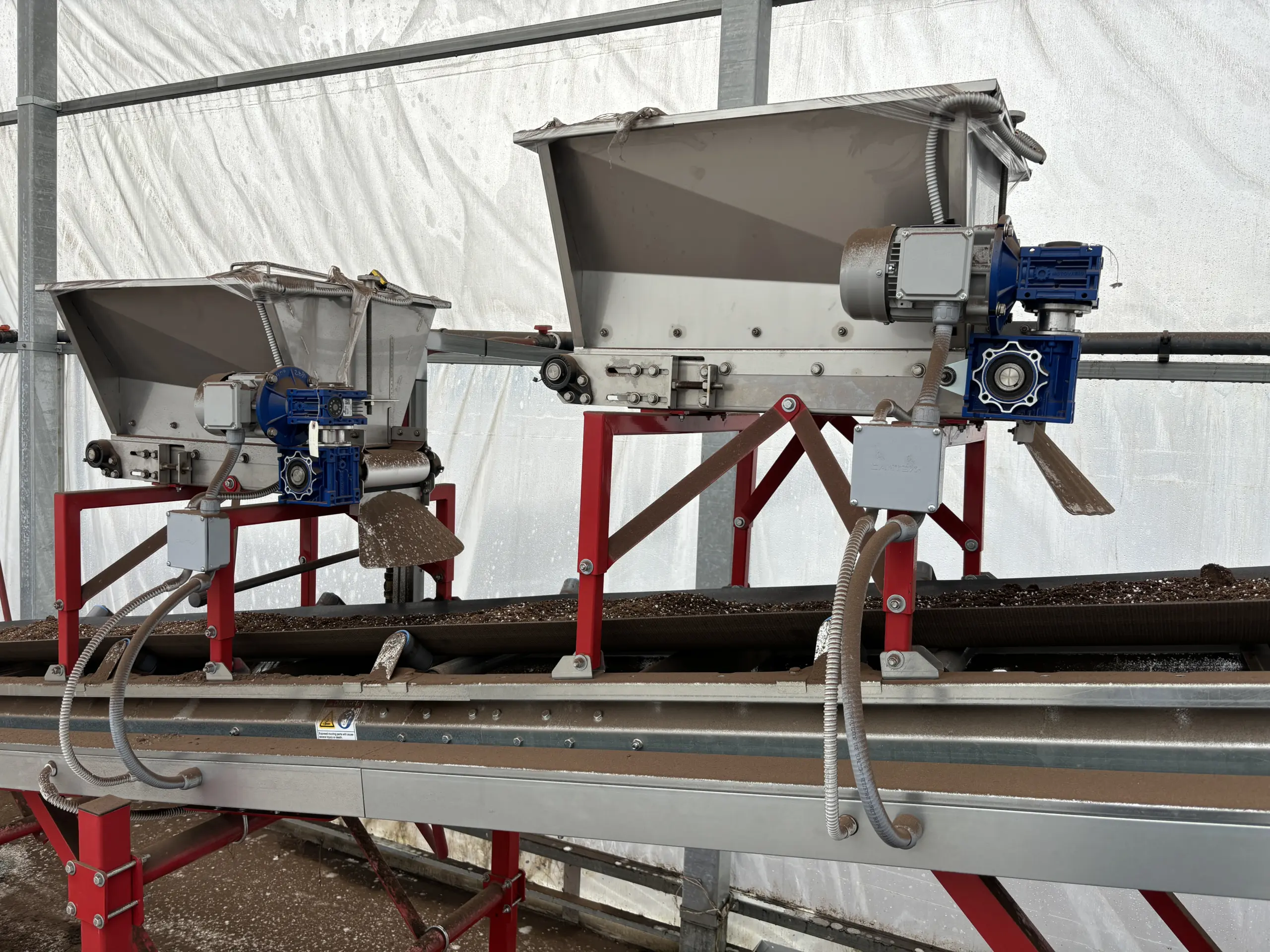

Precisely dispense chemical amendments like lime and wetting agents into your soil blending line. Compact stainless-steel hopper features a variable-speed belt that meters material beneath an adjustable gate, then distributes it via dispersion fan to break apart clumps for even coverage.

Flow sensors and load cells track material dispensed while low-level alarms minimize supervision and prevent material runout. Designed for seamless integration into automated soil delivery systems.

Contact For Quote

Details

- Stainless-steel construction for chemical resistance and durability
- Variable-speed belt for precise metering control
- Adjustable gate for output rate control
- Dispersion fan breaks clumps and distributes material evenly
- Flow sensors track material dispensed
- Low-level alarms alert when hopper nears empty
- Compact footprint: 3’3″ L x 2’6″ W x 2’9″ H
Standard:
- Volume: 2.5 ft³ (71L)
- Height: 2’9″ (838mm)
With Extensions:
- Volume: 8.75 ft³ (247L)
- Height: 4’5″ (1346mm)Options
- 20-inch sidewall extensions (increases volume to 8.75 ft³)
- Alternate gearbox configurations
- Load cells for precision output tracking
