Automatic Advanced Growcoon Dispenser

Automation

Automatic Advanced Growcoon Dispenser

Streamline your propagation process by automating the precise placement of Growcoons into trays. The Advanced model uses pick and place technology to deliver up to 56,000 Growcoons per hour at 1.2 seconds per row with superior accuracy and reliability.

Handles heights from 0.7–2.8" and top diameters from 0.4–3.9" across a wide range of tray and Growcoon combinations. Integrates into existing tray filling lines with optional tray destacker for continuous operation

For pricing and additional information, contact the AdeptAg Sales team.

Contact For Quote

PDF Brochure

Details

- Pick and place system for superior accuracy over traditional drop method
- Up to 56,000 Growcoons per hour capacity
- 1.2 second fill time per row
- Compatible with multiple Growcoon/tray combinations
- Tray dimensions: 9.8–23.6″ (short edge/long edge)
- Integrates into existing tray filling lines
- Energy-efficient and low-maintenance operation
- Designed to scale with production needs
Capacity: Up to 56,000 Growcoons/hr*
Fill Time Per Row: 1.2 sec
Growcoon Height Range: 0.7–2.8″
Growcoon Top Diameter: 0.4–3.9″
Tray Dimensions: 9.8–23.6″ (SE/LE)
Output Method: Pick & Place
Dimensions: 12’10″L x 4’7″W x 5’3″H
Power (USA/CA): 208V, 3-Phase
Compressed Air: 7.5 bar

*Capacity based on specific circumstances. Contact us for application-specific output estimates.

Options

Tray destacker for improved workflow
Custom tray/Growcoon configuration support

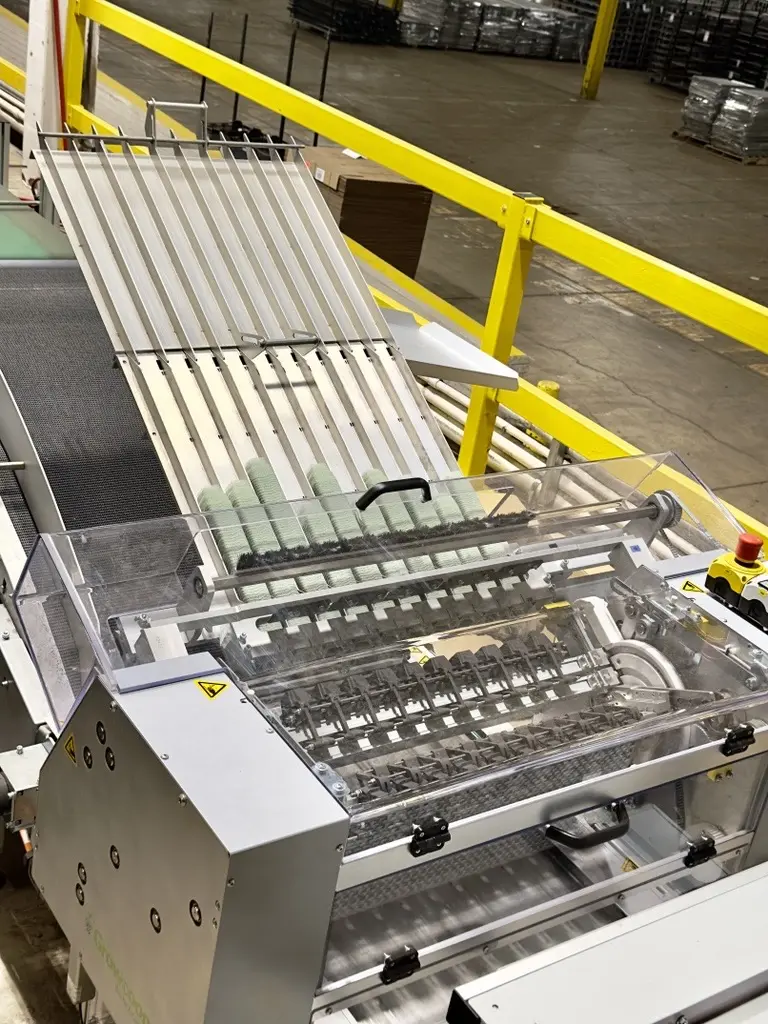

What the Automatic Advanced Growcoon Dispenser Does

Pick-and-place Growcoon placement, up to 56,000 an hour

The Automatic Advanced Growcoon Dispenser automates the precise placement of Growcoons into trays, seating up to 56,000 per hour, a full row every 1.2 seconds, with the accuracy and repeatability the old drop method can’t match. An integrated tray dispenser feeds the line automatically while pick-and-place technology seats every Growcoon correctly, and changeovers are fast across a wide range of tray and Growcoon combinations. It handles Growcoon heights from 0.7 to 2.8 inches and top diameters from 0.4 to 3.9 inches, across trays from 9.8 to 23.6 inches. Drop it into a full propagation line with an RN-12 tray filler, master controls, and sub-irrigation, with an optional tray destacker for continuous operation.
